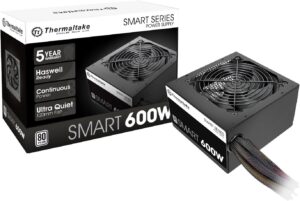

The Smart Series delivers exceptional performance with energy-saving efficiency up to 86%, supporting power-hungry builds with outputs ranging from 500W to 700W. Its intelligent cooling system ensures optimal airflow while operating at whisper-quiet noise levels. Designed for reliability, the Single +12V rail provides stable, uninterrupted power, making it ideal for demanding setups.
P/N: PS-SPD-0600NPCW-W
Short P/N: SPD-0600P
Model: SP-600AH2NKW
Type: Intel ATX 12V 2.3
Max. Output: 600W
Color: Black
Dimensions (H x W x D): 86mm x 150mm x 140mm
PFC: Active
Power Good Signal: 100-500ms
Hold-Up Time: 16ms (min) @ 60% load
Input Current: 10A max
Input Frequency: 50-60Hz
Input Voltage: 100-240Vac
Operating Temp: 5°C to 40°C
Operating Humidity: 20-85% (non-condensing)
Storage Temp: -40°C to 55°C
Storage Humidity: 10-95% (non-condensing)
Cooling: 120mm fan (1800 RPM ±10%)
Efficiency: 82-86% (20-100% load)
MTBF: 100,000 hrs
Safety Approvals: CE/CB/TUV/UL/FCC
PCI-E Connectors:** 6+2pin x 2
600W Continuous Power at 40°C+
Compliant with Intel ATX 12V 2.31 & EPS 12V 2.92 standards
80 PLUS Certified – 80% efficiency at typical load
Reliable Performance – 100-500ms power good signal, 16ms hold-up time (60% load)
Dual PCI-E 6+2pin Connectors – Supports high-end GPUs
Active PFC – Optimized power efficiency
100,000-Hour MTBF – Built for endurance
Advanced Protections – OPP, OVP, SCP for maximum safety
Stable 12V Rail – Consistent power delivery under heavy loads
Premium Components – Engineered for durability
50-60Hz Input Range – Universal compatibility
